Non Alkali Fiber Glass material

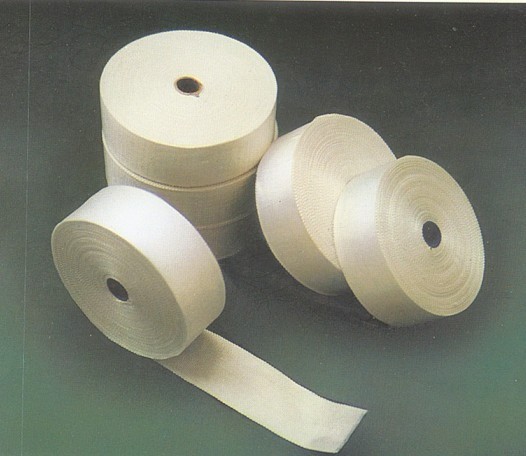

Material: Non-Alkali Fiberglass Tape ( in accordance with JC174-80)

Discriptions: Non-Alkali Fiberglass tape (usually refeered to as Non-Alkali tape) is weaved of non-alkali fiberglass.
With its features of heat-resistance and insulation, it can be used as the binding tape of coils for electrical machinery
(such such as motor) and applicance
Apperance: Accoding to the requirement of JC285-80

Length of each roll: 50 meters.
Technical Specification:

 Thickness mm

width mm

 Tolerance mm

 Density (pc/cm)

 Tensile Strength (N/strp)

no less than 10 x 100mm

 Texture

 warp

reft



 0.1+/-0.01

 13,15

 20,25

 +/-1

 +/-2

 27+/-2

 15+/-1

 196

 Plain weave

 0.17+/-0.015

 20,25

 +/-2

 27+/-2

 15+/-1

 294

 Plain weave



















Material: Heat treatment Fiberglass Sleeving, type HTG
Discription: The heat treatment sleeving is a non-alkali fiberglass braided sleeving with wax refined out and weaves set.
Then impregnated with silicone. It possesses the characteristic  of tensile strength. It can be used as an excellent insulating
material for the wiring of electrical machinery and appliances and domestic electrical appliances
Standard Length: 1000 (+20,-10)mm,  we also can offer accod. to client requirement
Appearance: The sleeving is round and smooth with a white surface
Heat Resistance: The sleeving will not harden and give off any smoke at the temperature of 500+/-10 dgree
Cutting feature: When the sleevinff is cut, the sectionwill not get loose, but remain smooth.

Tolerance of the sleeving (Unit: mm):
Inner Diameter
 Wall Thickness
Norminal
 Tolerance
Norminal
Tolerance
 1; 1.5
 +0.20
 -0.10
 0.20
 +/-0.05
 2;2.5;3;3.5
 +0.30
 -0.10
 0.30
 +/-0.05
 4;5;6
 +0.40
 -0.20
 0.40
 +/-0.10
 7; 8; 9
 +0.50
 -0.30
 0.50
 +/-0.15
