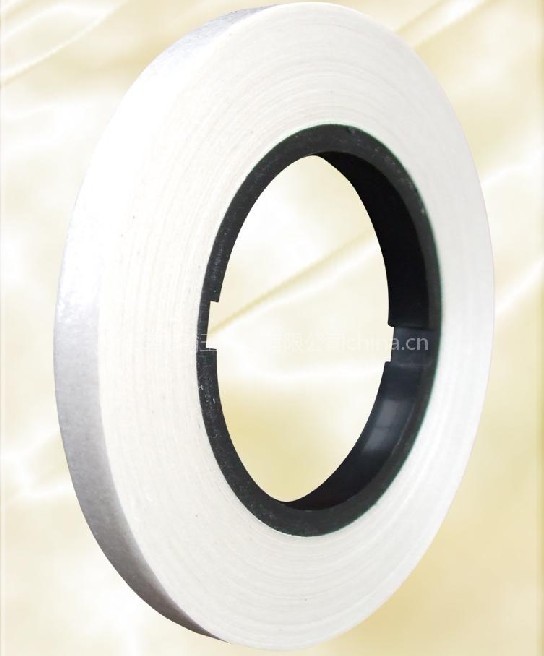

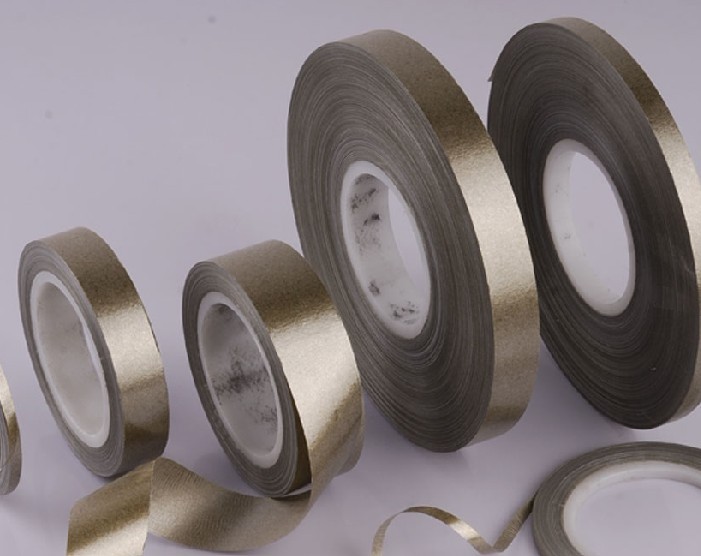

MIca Tape





Type: HM-T-GJ


This product  is  widely used in Electrical Industries
 TDS can be find in this attachment Mica Tape.pdf










Type:  Muscovite Mica tape



Item

Unit

Thickness 0.10mm

Appearance

----

  No alien material, no split, scar and hole, broken and folded, patched place

Width

MM

4.5--880

Length

 M

500,1000,2000

Thickness

 MM

  0.10±0.015

Weight of Tape

 g/㎡

  130±10

Weight of Paper

 g/㎡

90±5



 g/㎡

 33±2

Weight of Class Cloth



KV

 >1.5

Breakdown

Voltage



 N/15mm

≥180

Tensile Strength



 %

 13±3

Binder Content



 %

  >65

Mica Content



℃

450—500 IEC331

Fire Grades
