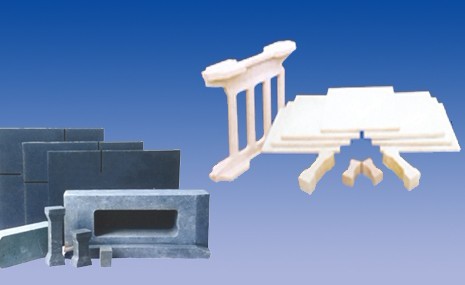

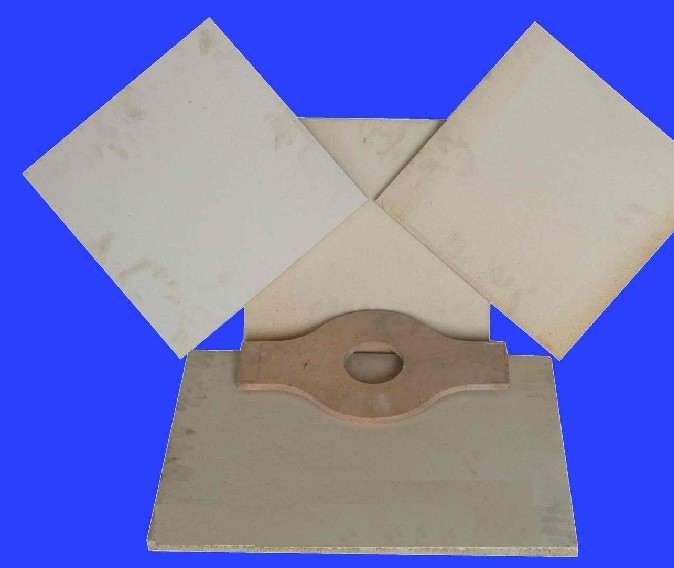

- STBPI can supply various kinds of Kiln Furniture such as Batts, Splicers, Props, Shoes, Caps, Beams, Slabs, Supports, Burner Tubes, Saggars, Plate Setters, etc.
- Technical Specifications
-
-
No. |
Item |
1 |
Chemical
Analysis |
Al2O3 % |
38.8 |
2 |
MgO % |
8.0 |
3 |
SiO2 % |
49.6 |
4 |
K2O % |
1.3 |
5 |
Na2O % |
0.06 |
6 |
Properties |
Density g/cm3 |
1.89 |
7 |
Coefficient of thermal expension,
10-6K-1 (20-1000°C) |
2.6 |
8 |
Modulus of rupture, MPa 20°C |
11 |
9 |
Modulus of rupture, MPa 1250°C |
14 |
10 |
Apparent porosity % |
28 |
11 |
Thermal shock resistance |
excellent |
12 |
Max, working temperature °C |
1350 |
13 |
Phase
Analysis |
Mullite |
22 |
14 |
Cordierite |
63 |
15 |
Spinel |
-- |
16 |
Alumina |
-- |
17 |
Quartz |
-- |
18 |
Glass |
15 |
-
-
-
|
|
